概述General introduction
RXQ3型消諧器是串接在6～35kV電壓互感器一次繞組中性點與地之間的一種非線性電阻消諧阻尼器件，用于消除電網運行、切換操作及接地故障引起的電壓互感器鐵磁諧振，有效限制接地電流，使電壓互感器免于損壞。
RXQ3 resonance eliminator is a nonlinear resonance elimination damper resistance cascaded to between 6 ~ 35kV voltage transformer primary winding neutral point and the ground, used for the elimination of voltage transformer is ferromagnetic resonance caused by grid operation, switching operation and grounding fault to effectively limit ground current and protect voltage transformers from damage.
RXQ3型消諧器的電阻元件選用電氣性能優異、超細顆粒的稀有金屬為基材的配方體系，經大噸位的液壓機壓制成高密度的餅型坯體及千度高溫?zé)Y(jié)而成，裸露的的電阻元件表面結構經特殊處理，可戶外裸露使用。
The resistive elements of RXQ3 resonance eliminator are made by pressing the formula system with excellent electrical performance, ultra-fine particles and metals as the base material into high-density green body the large-tonnage hydraulic machine body by large-tonnage hydraulic machine and then go through thousand degrees high temperature sintering. Through special processing, the bare resistive element special surface structure can be exposed for outdoor use.

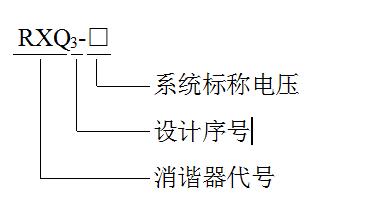

產品型號說明Model description
主要技術參數Main technology parameters
型號Type | RXQ3-6～10 | 備注 | ||
系統標稱電壓Nominal voltage of system kV | 6～10 | |||
系統接地方式Grounding of system | 不接地 Non Grounding | |||
非線性系數Nonlinear coefficientα | 0.4～0.5 | |||
直流殘壓DC residual voltage kV（15mA） | 1.45～1.65 | |||
外絕緣1分鐘工頻耐受電壓 External insulation 1 minute power frequency withstand voltage | 8 | |||
熱容量試驗 Heat capacity test | 10分鐘工頻電流500mA 10 minutes power frequency current 500mA | 無明顯損壞，試驗前后，直流殘壓的變化率≯±5% No significant damage, before and after the test, the change rate of DC residual pressure is ≯ ± 5% | ||
2小時工頻電流100mA 2-hour power frequency current 100mA | ||||
高度Height mm | 165 | |||
消諧器兩端電壓測量Voltage measurement at both ends of the harmonic elimination device | U≤3.0KV | |||
電壓、電阻參數測量Voltage and resistance parameter measurement | 0.3mA時 | 電壓100～160V | ||
電阻＞450K? | ||||
3.0mA時 | 電壓400～600V | |||
電阻＞180K? | ||||
外形結構圖Outline structure
用戶須知User notice
1 RXQ3-35型消諧器適用于高壓尾端與首端相同的電壓互感器的保護，如JDJJ-35、JDJJ1-35、JDJJ2-35、JDZX-35、JDZXW-35、JDX6-35、JDX7-35等，RXQ3-35I型消諧器適用于高壓尾端絕緣較低的電壓互感器的保護，如JDZX8-35G、JDZX9-35、JDZX11-35、UNE-35、UNEW-35等。
RXQ3-35 resonance eliminator is suitable for protection of voltage transformer with same high-pressure tail and head end, such as JDJJ-35, JDJJ1-35, JDJJ2-35, JDZX-35, JDZXW-35, JDX6-35, JDX7- 35, etc., RXQ3-35I resonance eliminator is suitable for protecting voltage transformer with lower high-pressure end insulation, such as JDZX8-35G, JDZX9-35, JDZX11-35, UNE-35, UNEW-35 and so on.
2 消諧器在投入運行前或運行一年后，應做預防性試驗，其項目為：測量消諧器的直流殘壓，直流電壓脈動系數不得大于±1.5%。
RXQ3 resonance eliminator should do defense tests, before running or after used one years. ways are as following：Measuring the DC residual voltage of the resonance eliminator, the DC voltage ripple factor shall not exceed ± 1.5%.
3 在日常運行中，由于單相接地或負載不對稱等其它原因造成三相電壓不對稱，這時消諧器上有一定的電壓，人員請勿直接接觸。
In daily operation, if three-phase voltage asymmetry is caused by the single-phase grounding or load asymmetry, then there is a certain voltage on the resonance eliminator; the staff shall not directly contact it.
4 用戶不得隨意拆裝改產品，訂貨時請寫清產品型號。
Users are not free to disassemble or change the product. Please write clearly the full product model when ordering.
5 使用在空氣中無嚴重污穢及腐蝕性介質的場所。
Use the product in the places where there is no serious contamination and corrosive media in air.
6 外形合理、體積小、重量輕；
Reasonable shape, small size, light weight;
7 熱容量大、溫升低、散熱快；
Heat capacity, low temperature, fast heat dissipation;
8 結構獨特、強度高，易安裝。
Unique structure, high strength, easy installation.
